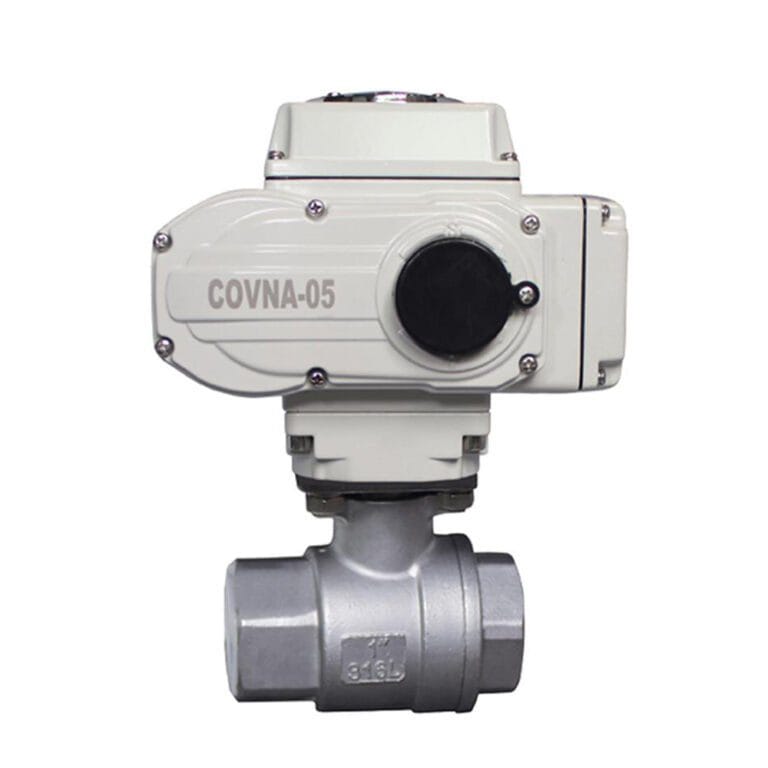

COVNA HK60-Q-2PS DN50 Female Thread Motorized Actuator Ball Valve
Two piece two way GB standard motorized ball valve, electric actuation. 316 stainless steel body, with a quarter turn 90 degree electric actuator. Torque range from 50Nm to 160Nm. Size optional: 1/2 inch, 3/4 inch, 1 inch, 1 1/4 inch, 1 1/2 inch and 2 inch. Available in DC-12V, 24V; AC 110V, 220V, 380V 50/60Hz. Widely used in water treatment, etc.
COVNA is professional electric ball valve manufacturer over 2o years. Offer different type electric ball valve, electric butterfly valve, pneumatic actuated ball valve, pneumatic actuated butterfly valve.
Model: HK60-Q-2PS
Size Range: 1/4'' to 4''
Pressure Range: 0 to 1.6MPa
Material: Stainless Steel
Medium Pressure Stainless steel Motorized Valve for Water Features:
The dual--piece, large-diameter sphere valve implements an optimized structural design which provides improved flexibility and convenience of operation. The reliable product quality and significantly reduced defective rate is achieved while avoiding medium erosion is achieved by the sealing surface and the normally closed ball structure. This has also greatly improved the reliability of maintenance of the equipment. The strength and toughness of the valve body material is high which means it can withstand rapid installation and commissioning. Furthermore, the complex working conditions of corrosive media like Water, Gas, Steam, Oil, Nitric Acid, Acetic Acid, etc. are effortless to cope with. Unlike conventional products, this actuator valve optimizes cost through process innovation, increasing the value of fluid control systems for companies. With performance indicators surpassing industry benchmarks, comprehensive costs are reduced, without sacrificing standard performance.
Technical Parameters of Valve Actuator
| ON/OFF Type | Feedback: the active contact signal, passive contact signal, resistance, 4-20mA |
| Regulation Type | Input & Output signal: DC 4-20mA, DC 0-10V, DC 1-5V |
| Field operation | The Field, Remote Control Switch Regulation and MODBUS, PROFIBUS Field Bus |
| Voltage Optional | AC110-240V 380V 50/60HZ: DC12V, DC24V, Special Voltage Can be Customized |
| Protection Class | IP65, Explosion Proof Construction Are Available: EX ll BT4 |

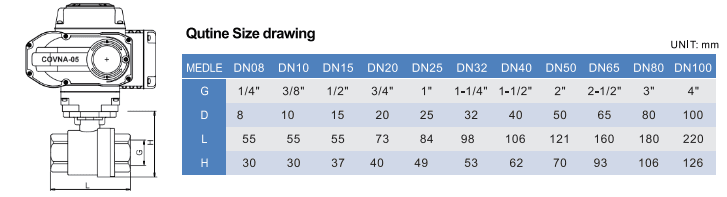

Technical Parameters of Valve Body
| Body | Valve components | ||
| Size Range | DN08-DN100 | Seating material | PTFE: -20℃~180℃
PPL: -20℃~150℃ |
| Body Material | SS304, SS316, SS316L | Core Material | Stainless Steel |
| End Connection | Female Thread | Stem Material | Stainless Steel |
| Operating Pressure | PN1.6MPa | Applicable media | Control of water, Air, Gas, Oil, Liquid, Steam |
| Structure | Floating ball core | ||
The actuator on my automated valve operates, but the valve won’t turn. Why?
Most likely the valve stem or actuator coupling is broken.
Why doesn’t my valve open or close completely when the actuator operates it?
The electric actuator limit switches or the pneumatic actuator position stops are not correctly adjusted.
When I energize the solenoid on my pneumatic actuated valve, the valve won’t turn. How come?
Probably because there is no air pressure to the solenoid or dirt has jammed it. Also, debris might be trapped inside the valve. Or, the air pressure is not sufficient to operate the actuator. Remember: measure air pressure at the actuator, not at the compressor.
Can I buy an actuator from one manufacturer and mount it to a valve from another manufacturer?
Maybe. First, be sure that the actuator torque output is sufficient to turn the valve reliably. Second, you will have to fabricate a custom mounting bracket and coupling to connect the actuator to the valve.
What happens if I lose power to my electric actuator in the middle of an actuation cycle?
The valve will stop somewhere between full open and close. When power is reapplied to the original circuit, the actuator will complete the cycle.
I ordered a fail open pneumatic actuated valve by mistake. I needed a fail closed one. What can I do?
To make the change just remove the actuator from the valve and turn it, or the valve stem, 90 degrees and remount the actuator.
I’ve installed my automated valve in the line, but now I don’t know if the valve is in the open or closed position. How can I find out?
Remove the actuator from the valve and check the valve stem. Most ball valves have stem flats at right angles to the flow when the valve is in the off position. On butterfly valves check the stem flow arrow marking.
Do I have to have the solenoid valve that controls the air supply to my pneumatic actuator mounted right on the actuator?
Remove the actuator from the valve and check the valve stem. Most ball valves have stem flats at right angles to the flow when the valve is in the off position. On butterfly valves check the stem flow arrow marking.
How do I wire up my electric actuator?
Check the electric wiring schematic that came with the actuator for the correct hookup. Sometimes a copy is inside the actuator cover. If it is missing, don’t guess about the connections. Call the manufacturer for a schematic.
I’ve just installed an electric actuated valve and when I power it, it turns the valve 360 degrees and won’t shut off. What’s wrong?
The actuator is wired incorrectly (check the schematic accompanying the actuator), or the external control switch is not the correct type for the actuator.
My electric actuators cycle time is way too fast, can I slow it down?
Not unless you bought it with an optional speed control.
I just replaced a solenoid valve with an electric actuated valve and it won’t work. Why?
Actuators and solenoid valves require different types of electrical control switches. SPDT for actuators, SPST for solenoids. Check the actuator wiring schematic for the correct wiring and switch type.
