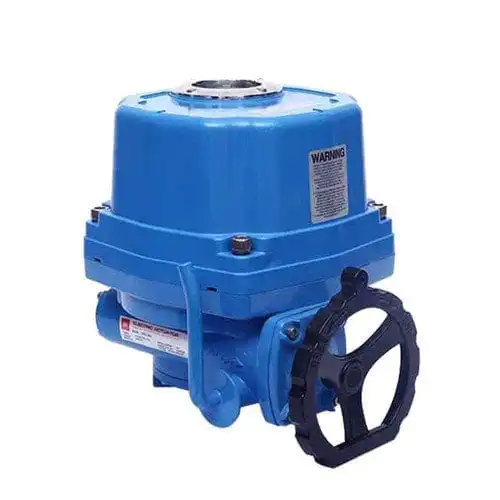

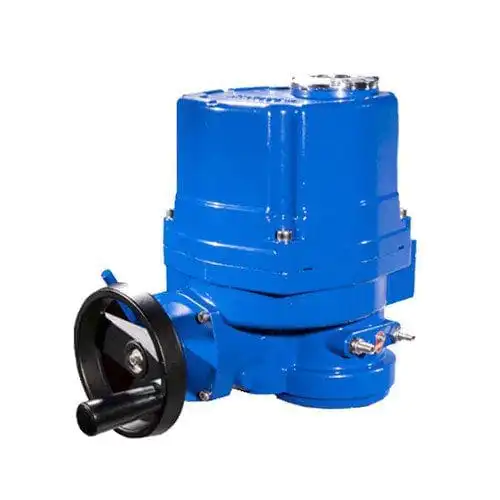

COVNA QT Series Explosion-proof Electric Actuator
COVNA QT Explosion-proof Electric Actuator has a good sealing performance, high safety factor. Protection grade is IP65, IP68. The maximum output torque is up to 2,000N.M. Driven by 380V /220/ 110V AC power and controlled with 4-20mA current signals or 0-10V DC voltage signals. Suitable for 0-270° rotary valve , like ball valve, butterfly valve, gate valves, globe valves. Widely used in gas industry, LPG industry and so on. With manual override. Manual control in case of power failure.
- Model: QT
- Size Range: QT10 to QT 200
- Pressure Range: 1.0 to 6.4MPa
- Material: Aluminum Alloy
COVNA QT Series Explosion-proof Electric Actuator
- Application Range: Suitable for 0°-270° rotation valves like butterfly valves, ball valves, air throttles, baffle valves, plug valves, and shutter valves.
- Industry Use: Applicable in sectors such as petroleum, chemical engineering, water treatment, shipbuilding, paper manufacturing, power stations, heat supply, building automation, and light industries.
- Power and Control: Operates on 380V/220V/110V AC power and supports 4-20mA current signals or 0-10V DC voltage signals for precise automatic control.
- Torque Capacity: Offers a maximum output torque of 2,000N.M for demanding operations.
- Explosion-Proof Certification: Ensures safety and quality standards with certified explosion-proof features.
| Model | M ax. output torque(N·M) | 90°Action lime 60 /SOHz(s) | Max. shaft diamete(mm) | Motor class F(W) | Rated current (A) 60/SOHZ | Single phase
(110v/220v) |
Three phase 380v | Three phase 440v |
| OT- 010 | 100 | 18/22 | Φ20 | 25 | 1.10/0.95 | 0.55/0.54 | 0.3/0.3 | N/A |
| OT-015 | 150 | 21/25 | Φ22 | 40 | 1.65/1.67 | 0 88l0.84 | 0.31/0.31 | 0.30/0.31 |
| OT- 020 | 200 | 21/25 | Φ22 | 40 | 1.67/1.67 | 0.89/0.85 | 0.31/0.31 | 0.30/0.31 |
| OT-050 | 500 | 26/31 | Φ35 | 120 | 3.60/3.62 | 1.55/1.58 | 0.59/0.59 | 0.58/0.58 |
| QT-100 | 1000 | 31/37 | Φ45 | 200 | 4.1014.10 | 2.15/2.20 | 0.85/0.85 | 0.7910.79 |
| QT- 200 | 2000 | 93/112 | Φ65 | 200 | 4.10/4.10 | 2.15/2.20 | 0.85/0.85 | 0.7910.79 |
